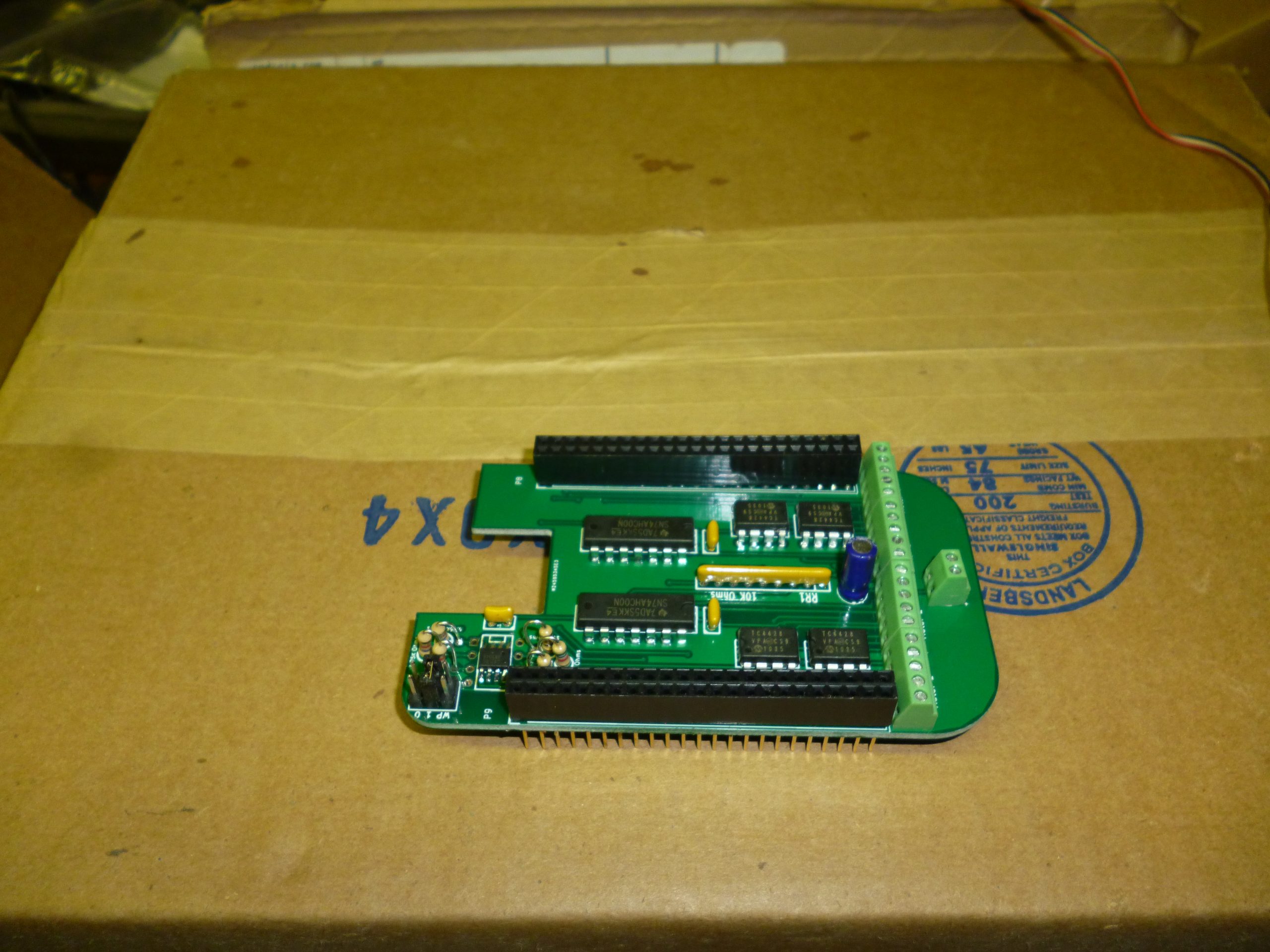

Quad Stall Motor Control and Sense Cape for Beagle, bare circuit board w/ doc

By RobertHeller. Filed in

TOP  del.icio.us  digg  facebook

$10.00

This is a circuit board to for an add-on board for a Beagle Bone Black that will control four stall-motor turnout motors for a model railroad. It also has sense logic to return the state of the turnouts, using one pole of the DPDT contacts in the stall-motor (typical of Tortoise stall-motors).

4 in stock

Description

This is a circuit board to for an add-on board for a Beagle Bone Black that will control four stall-motor turnout motors for a model railroad. It also has sense logic to return the state of the turnouts, using one pole of the DPDT contacts in the stall-motor (typical of Tortoise stall-motors).

The circuit board uses a pair of 46pin headers to connect to the pair of 46pin headers on the Beagle Bone Black and can use a stack-through header to allow additional boards to be stacked on top of it.

GPIO Pins Used and stacking restrictions.

This board uses eight GPIO pins:

GPIO 0.07, P9-42
Motor Select 1: select the position of stall motor 1.
GPIO 1.6, P8-3
Motor Select 2: select the position of stall motor 2.
GPIO 1.28, P9-12
Point Sense 1: return the state of the points for stall motor 1.
GPIO 1.7, P8-4
Point Sense 2: return the state of the points for stall motor 2.
GPIO 1.16, P9-15
Motor Select 3: select the position of stall motor 3.
GPIO 1.17, P9-23
Motor Select 4: select the position of stall motor 4.
GPIO 3.21, P9-25
Point Sense 3: return the state of the points for stall motor 3.
GPIO 3.19, P9-27
Point Sense 4: return the state of the points for stall motor 4.

Each of the motor drive circuits is through a TC4428, which can drive up to 1.5A, which is way more needed to drive typical stall motor. It is enough to drive a pair of stall motors, wired in parallel as would be the case for a cross over.

Because this board is hardwired to use eight specific GPIO pins it is not possible to use two or more of these boards on given Beagle Bone.

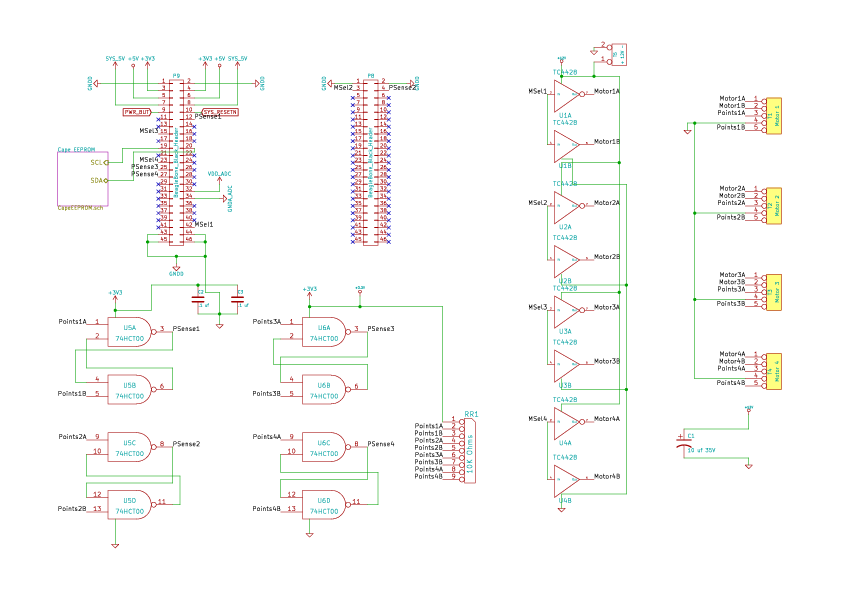

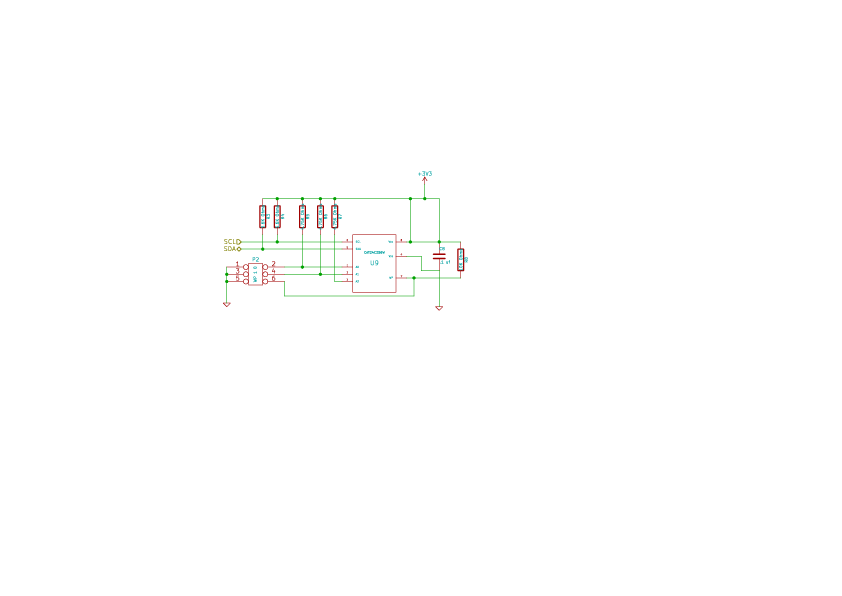

Circuit Description

This circuit contains two sections. There is an output section that contains four TC4428 chips. Each chip has a non-inverting and an inverting driver. The inputs of both drivers are connected to one of the motor GPIO pins. The output are wired to the terminal block for a one of the motors. For any given logic state of the motor control output, one of the drivers is “on” and the other is “off”, thus one motor terminal is ground and one is raised to the 12V supply. This means alternative states of the logic line will drive the stall motor in alternative directions.

The other section is a quartet of flip-flop debounce circuits, one for each of two SPDT switch contacts that report the position of the turnout points. The output of these flip-flops goes to a quartet of GPIO input pins.

Parts List

Value Quantity References Mouser Part Number Adafruit Part Number
.1 uf 2 C1 C2 581-SR201C104KARTR1
10 uf 35V 1 C3 667-ECA-1HM100I
BeagleBone_Black_Header 2 P8 P9 200-ESQ12314GD
10K Ohms 1 RR1 652-4609X-1LF-10K
Motor 1;Motor 2;Motor 3;Motor 4 4 T1 T2 T3 T4 651-1725685
+ 12V – 1 T5 651-1725656
TC4428 4 U1 U2 U3 U4 579-TC4428VPA
74HCT00 2 U5 U6 595-SN74AHC00N

The only parts that might be substituted are P8 and P9 (the Beagle Bone Headers), and T1 though T4 (the Motor terminals) and T5 (the 12 to 16 Volts terminals). The parts listed are for the stacking headers for the Beagle Bone Headers Headers, and screw terminals for the Motor terminals and the motor power terminals. Feel free to select a non-stacking header for the Beagle Bone Headers and to select either pin arrays or spring terminals for the T1, T2, T3, T4 and T5.

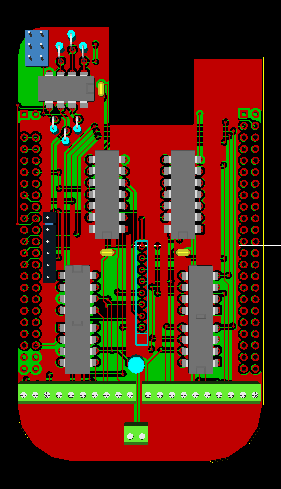

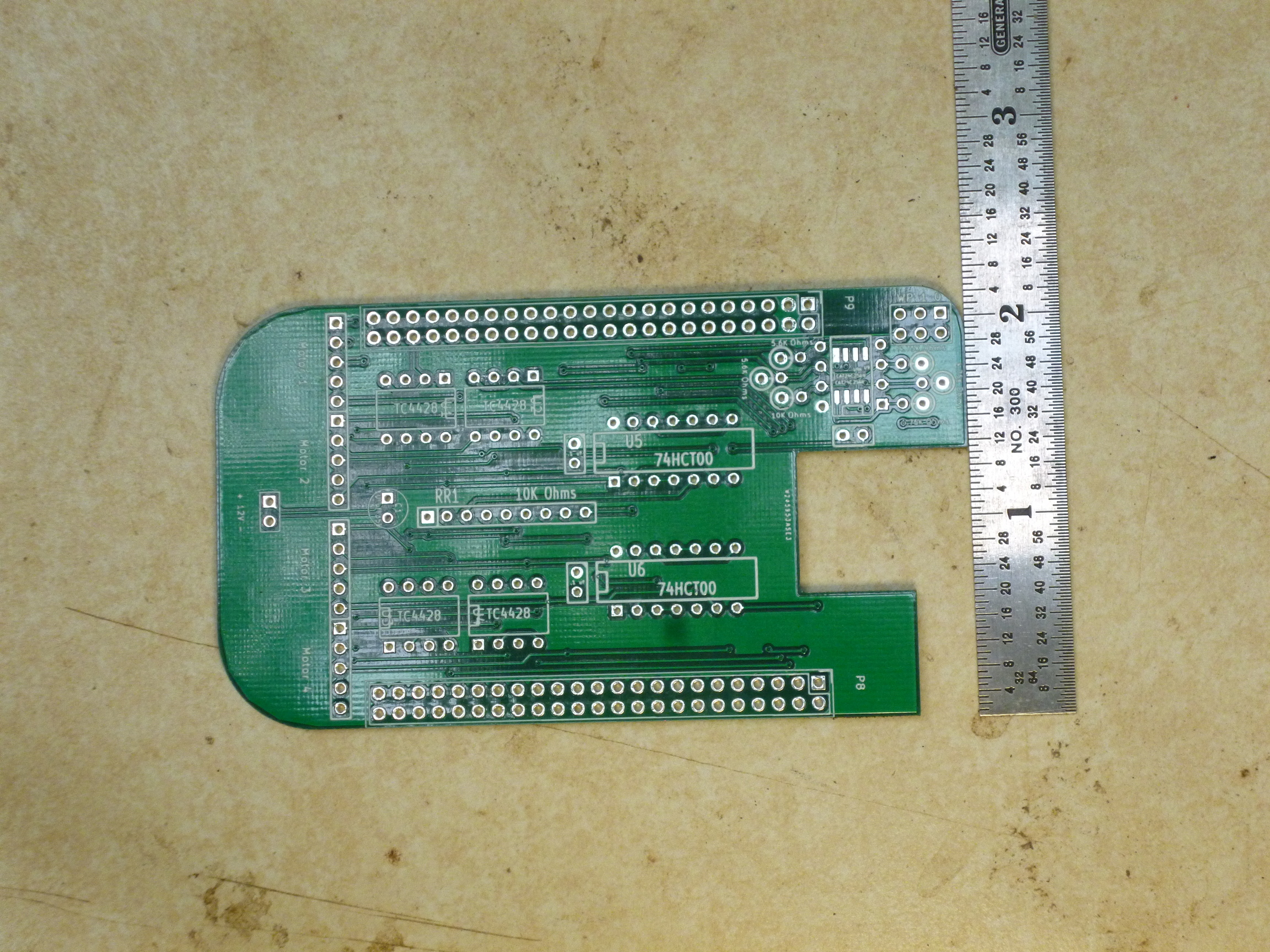

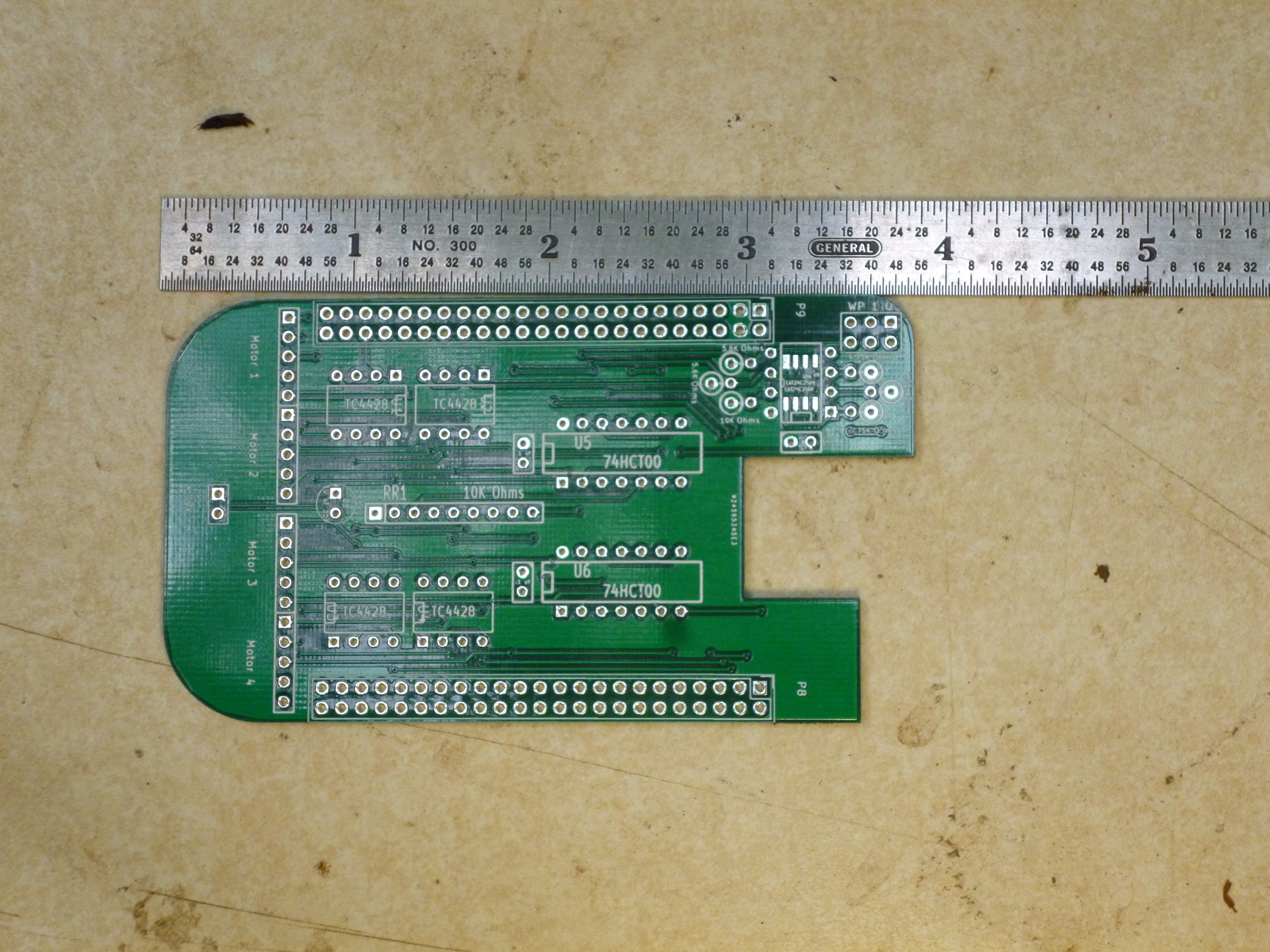

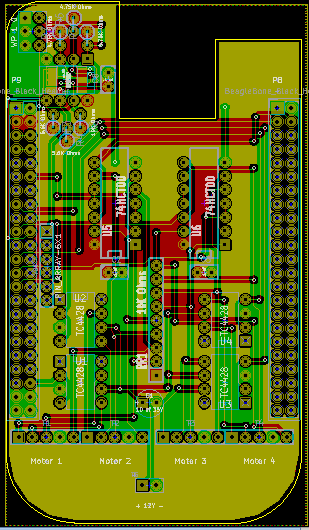

Circuit Board Layout

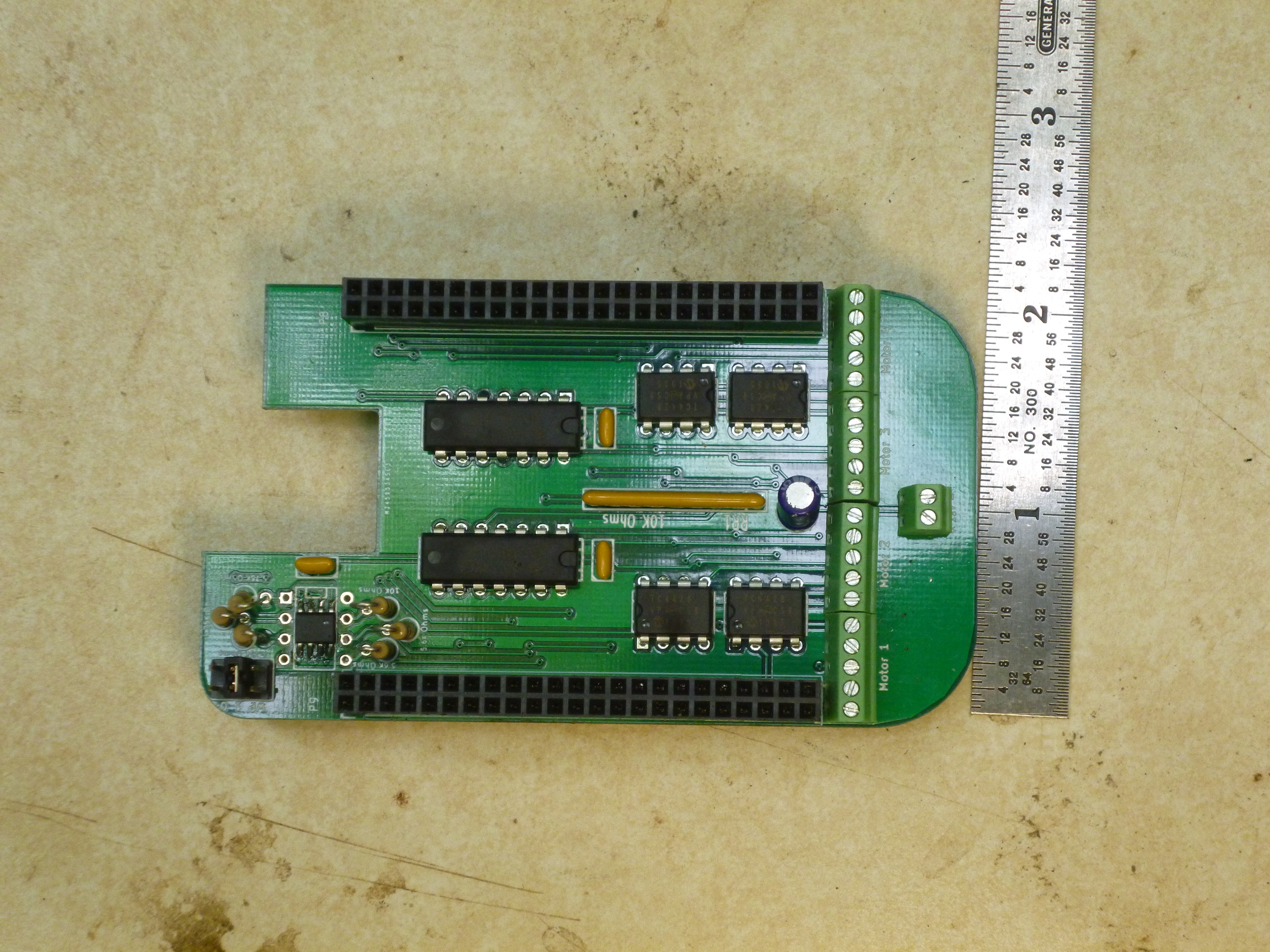

Board assembly is straight forward. You need to be careful orienting the ICs and the electrolytic capacitor.

Additional information

Brand

The Country Robot

Function

Point Sense, Stall Motor Driver

MCU/SMB

Beagle Bone
