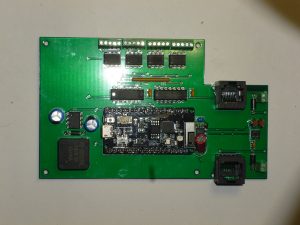

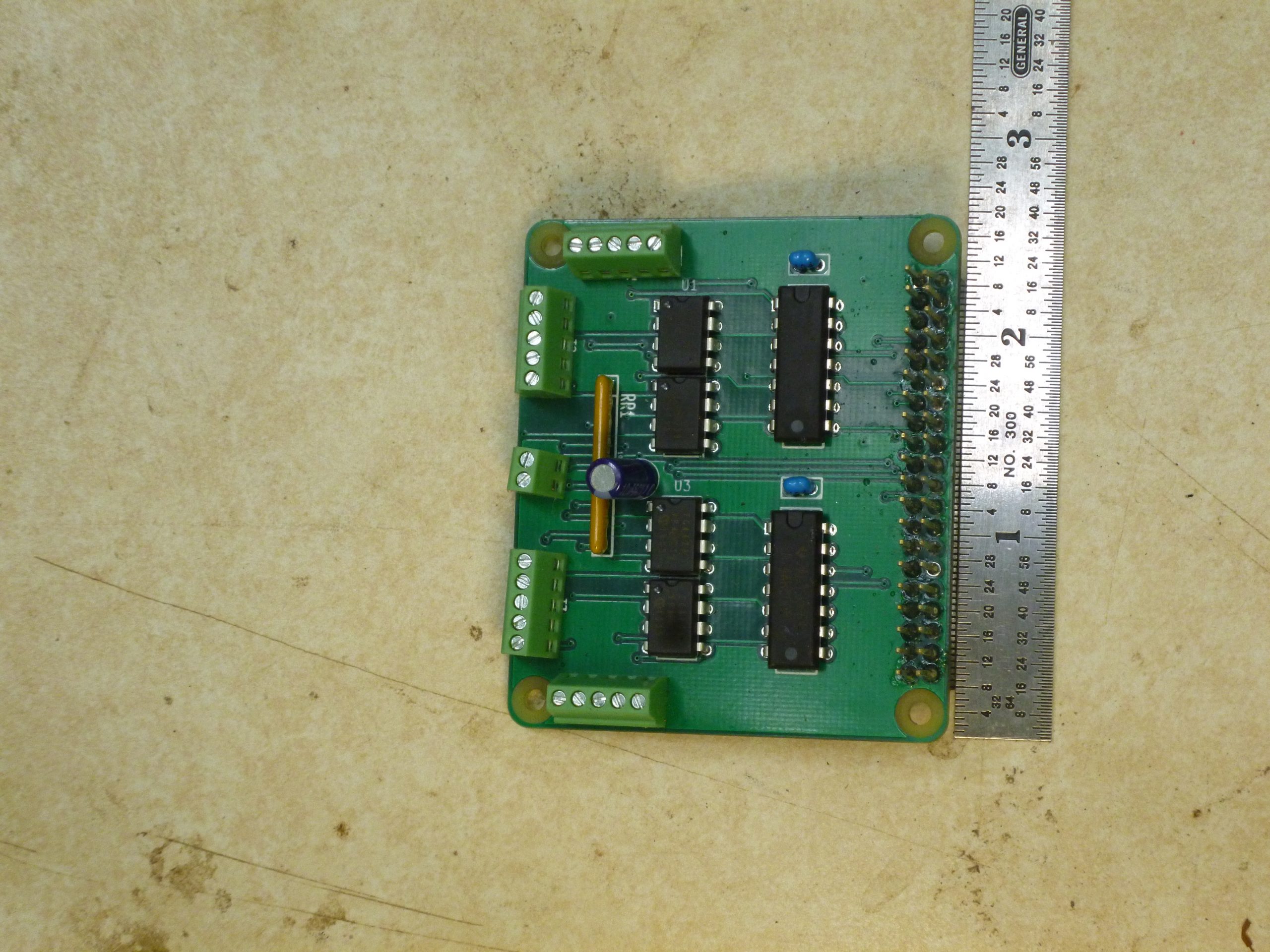

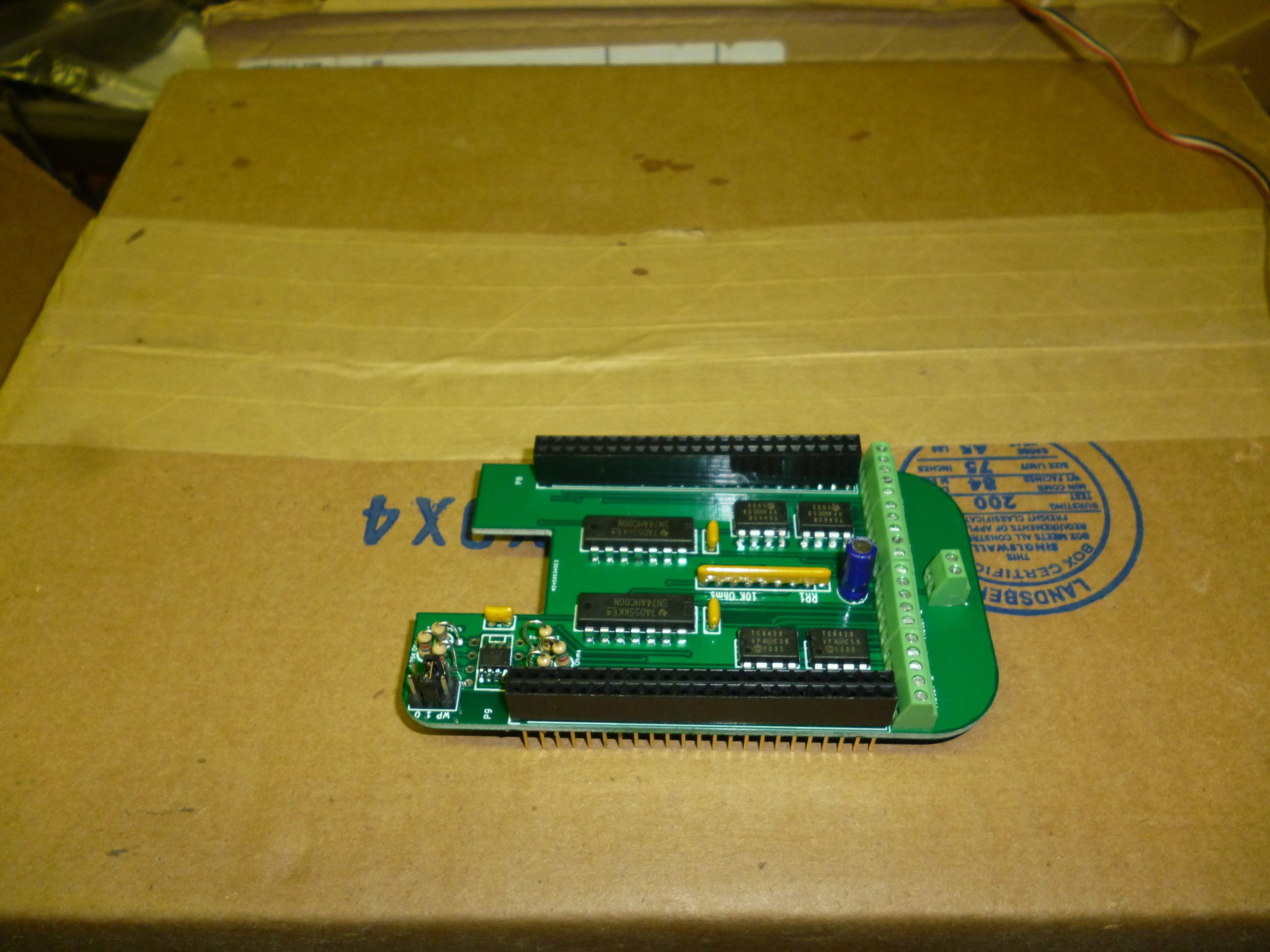

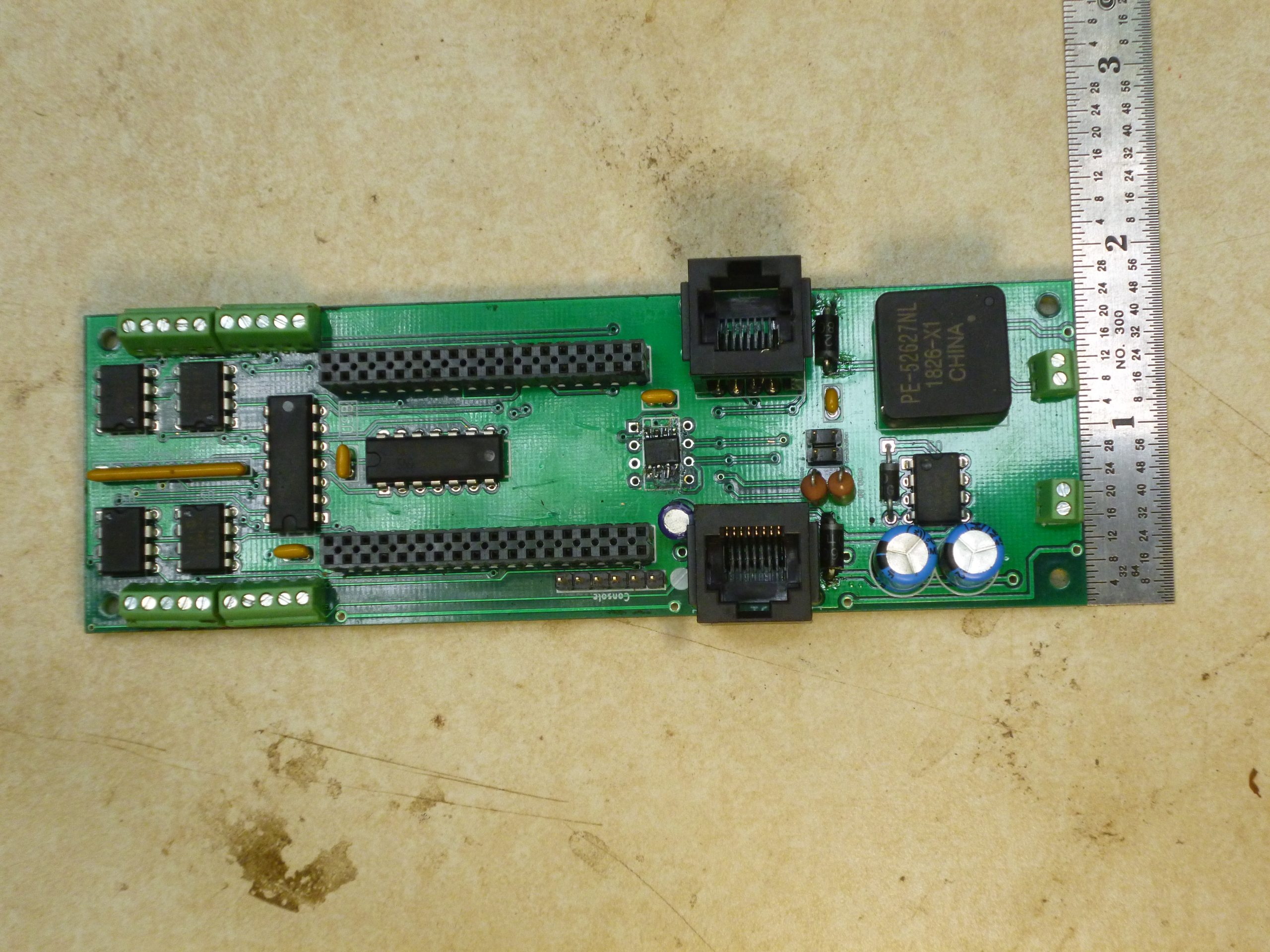

ESP32 Base BoardPocket Beagle Base BoardBeagle Bone CapeHat (assembled)The Country Robot has designed four printed circuit boards that implement a Quad Stall Motor Driver with Sense. These boards use the same basic circuit. There is a HAT board for a Rasberry Pi B+, a Cape board for a Beagle Bone, a base board for a Pocket Beagle, and a base board for an ESP32 Dev Kit board (or TTGO-T1 board). There is an OpenMRN node program for the Linux-based SMCs and an OpenMRN Lite sketch for the ESP32 MCU.

Circuit Description

This circuit contains two sections. There is an output section that contains four TC4428 chips. Each chip has a non-inverting and an inverting driver. The inputs of both drivers are connected to one of the GPIO pins. The outputs of each pair of drivers are wired to the terminal block for one of the motors. For any given logic state of the motor control output, one of the drivers is "on" and the other is "off", thus one motor terminal is ground and one is raised to the 12V supply. This means alternative states of the logic line will drive the stall motor in alternative directions.

The other section is a quartet of flip-flop debounce circuits, one for each of two SPDT switch contacts that report the position of the turnout points. The output of these flip-flops goes to a quartet of GPIO input pins.

Board Documentation

The board designs are on GitHub:

Raspberry Pi HAT
https://github.com/RobertPHeller/RPi-RRCircuits/tree/master/QuadSMCSenseHat
Beagle Bone Cape
https://github.com/RobertPHeller/RPi-RRCircuits/tree/master/QuadSMCSenseCape
Pocket Beagle Base Board
https://github.com/RobertPHeller/RPi-RRCircuits/tree/master/PocketBeagleQuadSMCSense
ESP32 Base Board
https://github.com/RobertPHeller/RPi-RRCircuits/tree/master/ESP32QuadSMCSense

The base boards for the Pocket Beagle and the ESP32 also include a CAN transciver with LCC connectors and 5V power supply. Additionally, printable documentation is available as LaTeX source at https://github.com/RobertPHeller/RPi-RRCircuits/tree/master/Documentation and is available in printed form from LuLu.

Getting the boards

There is a limited supply of the boards for sale on E-Bay:

Local Massachusetts Model Railroaders can now use their Common Good accounts to buy these board (assumes local pickup):

  • Raspberry Pi HAT
  • Beagle Bone Cape
  • Pocket Beagle Base Board
  • ESP32 Base Board

While supplies last

And boards can also be ordered from PCBWay:

I am considering producing kits, but don’t know if anyone will buy kits. Please fill out this form if you would be interested in these in kit form:

Country Robot MRR Kits
Product Type *
Which products are you interested in *
reCAPTCHA

I will be getting boards made for the other circuits I have designed and will add these additional boards as either bare boards or possibly kits as well.
